Laparoscopic Pack

keyboard_arrow_left

keyboard_arrow_right

Insufflation Tubing Set with Gauze Swab

Insufflation Tubing Set: Sterile, single use and disposable, insufflation tubing set for use in laparoscopic surgery (minimally invasive) for delivery of clean filtered CO².

Gauze Swab: For general wound dressing procedures, including wound cleansing, absorption of blood and exudates, wound coverage and protection.

Not interested in this product, why not explore our range of Ward & Theatre Consumables?

Get in touch

Key Features

Specification

More Info

All materials used are DEHP and Latex Free.
Cotton Gauze Swab

All angles, lengths and dimensions are nominal.
Please note any products featuring a “*” indicates the product is distributed by Pennine.

Product Code

Type/Ends

Inside Diam.

Length

Box Qty

PEN-1250

Male Luer and Wolf Connector

6mm

2.5m

PEN-1330E

Male Luer and Funnel Connector

6mm

PEN-1330LL

Male Luer and Male Luer

6mm

PEN-1331

Male Luer and 15/22mm Filter Adaptor

6mm

PEN-1334

Female Luer and Male Luer

6mm

PEN-1250

Filter Spec:

Inlet/Outlet Connectors of the filter:
– In: OD 8mm (approx.) hose barbed and ID 3.6mm (approx.);
– Out: OD 15 mm Male ISO and ID 12.7mm (approx.).
Approx. dimensions of filter: 65mm diameter x 55.7mm height. Bidirectional filter.
Weight of filter: 17gm (approx.).
Filter Efficiency @ 15L/min using DEHS@0.3µm: Min.99.8%

Gauze Swab Spec:

10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free

PEN-1330E

Filter Spec:

Inlet/Outlet Connectors of the filter:
– OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of the filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%

Gauze Swab Spec:

10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free

PEN-1330LL

Filter Spec:

Inlet/Outlet Connectors of the filter:
– OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of the filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%

Gauze Swab Spec:

10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free

PEN-1331

Filter Spec:

Inlet/Outlet Connectors of Filter: 22mm Male/15mm Female – 22mm Female/15mm Male ISO Connector.
Bidirectional Filter.
Approx. dimensions of filter: 61.5mm x 48.9mm x 48.9mm.
Weight of filter: 22g (approx.).
Filter Efficiency @ 30L/min using TSI 8130: Min. 99.0%

Gauze Swab Spec:

10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free

PEN-1334

Filter Spec:

Inlet/Outlet Connectors of Filter: OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%

Gauze Swab Spec:

10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free

Laparoscopic Pack

Insufflation Tubing Set with Gauze Swab

All materials used are DEHP and Latex Free.

Cotton Gauze Swab

PEN-1250

PEN-1330E

PEN-1330LL

PEN-1331

PEN-1334

Enquire Now

Download Your FREE Copy of The Laparoscopy Brochure

Related Products

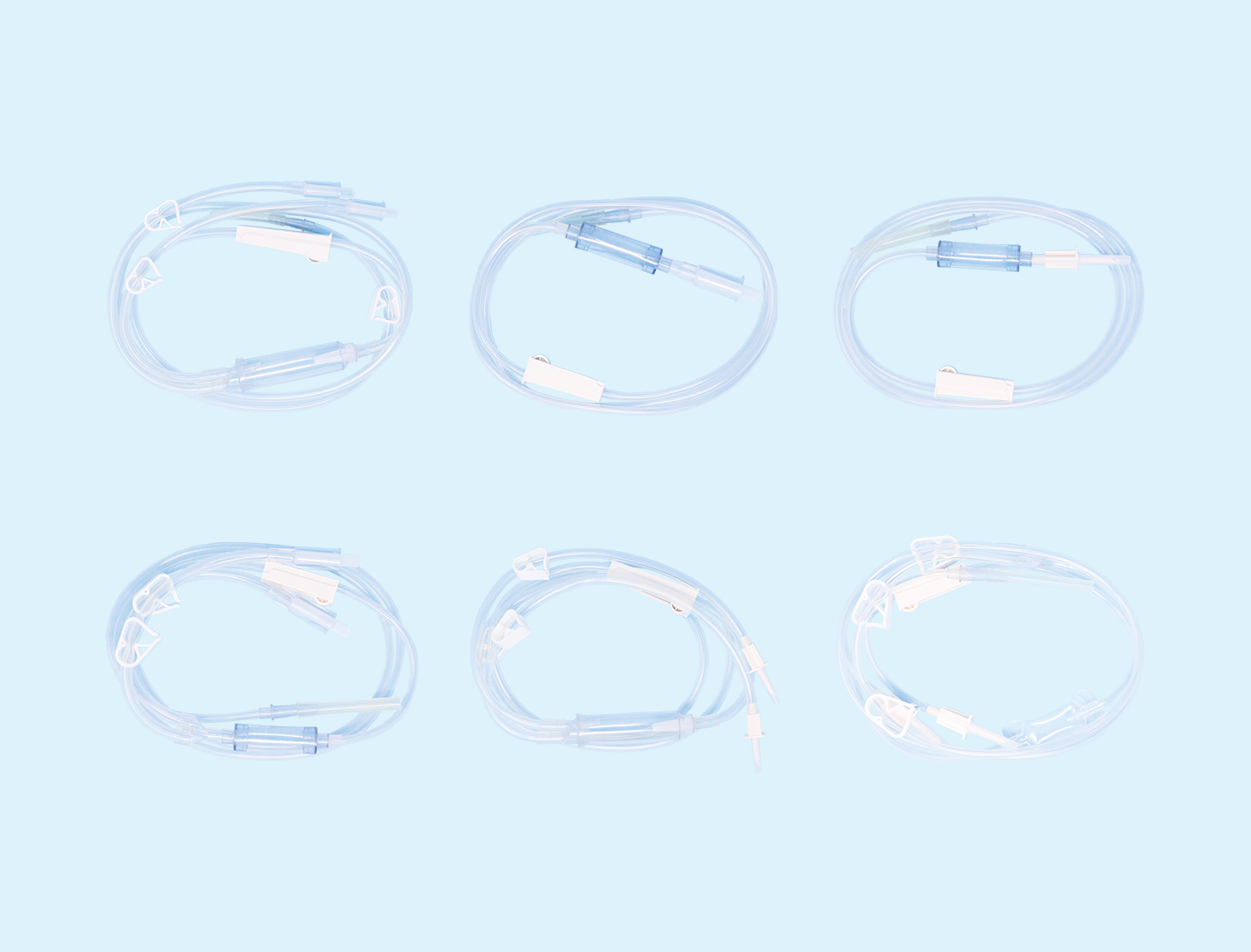

Suction Irrigation Sets
