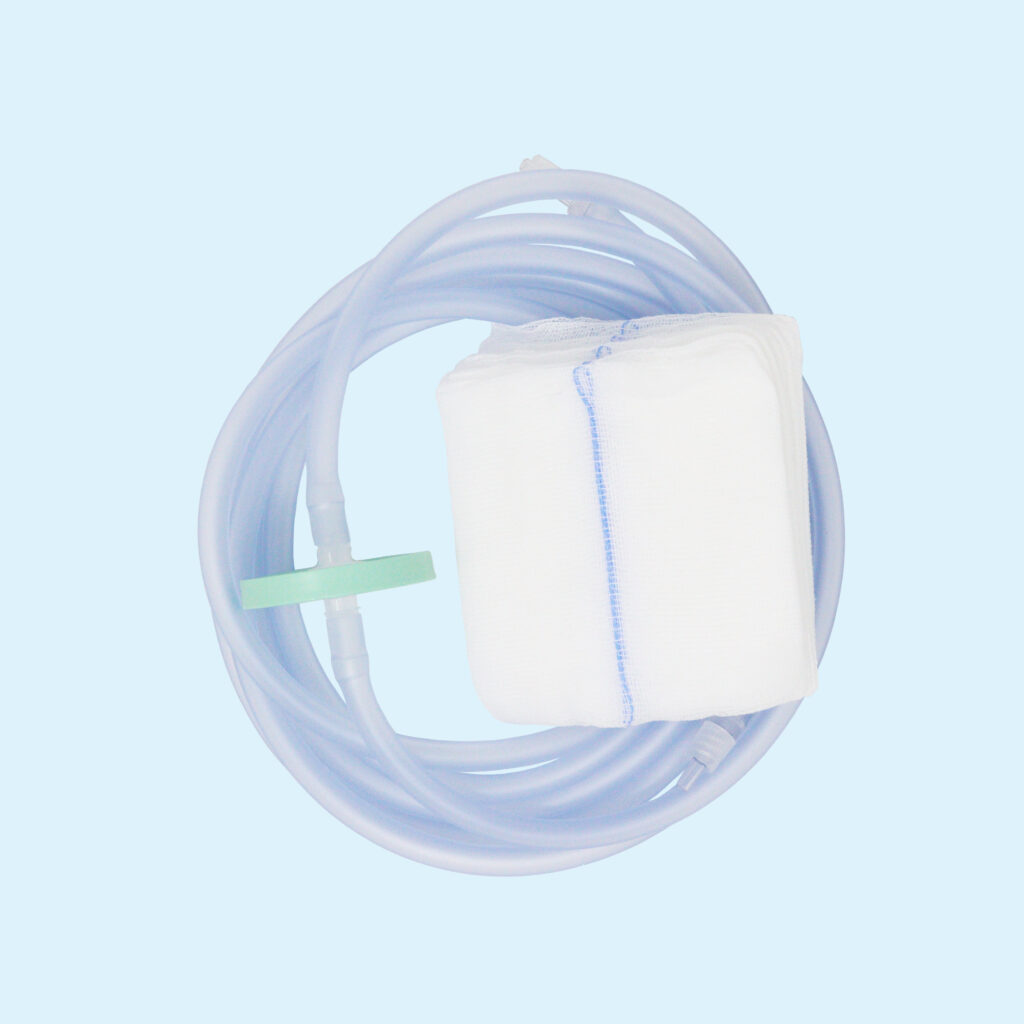

Insufflation Tubing Set: Sterile, single use and disposable, insufflation tubing set for use in laparoscopic surgery (minimally invasive) for delivery of clean filtered CO².

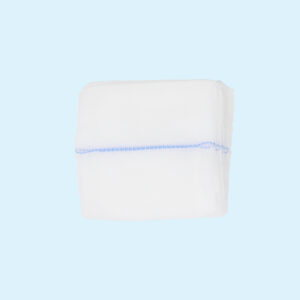

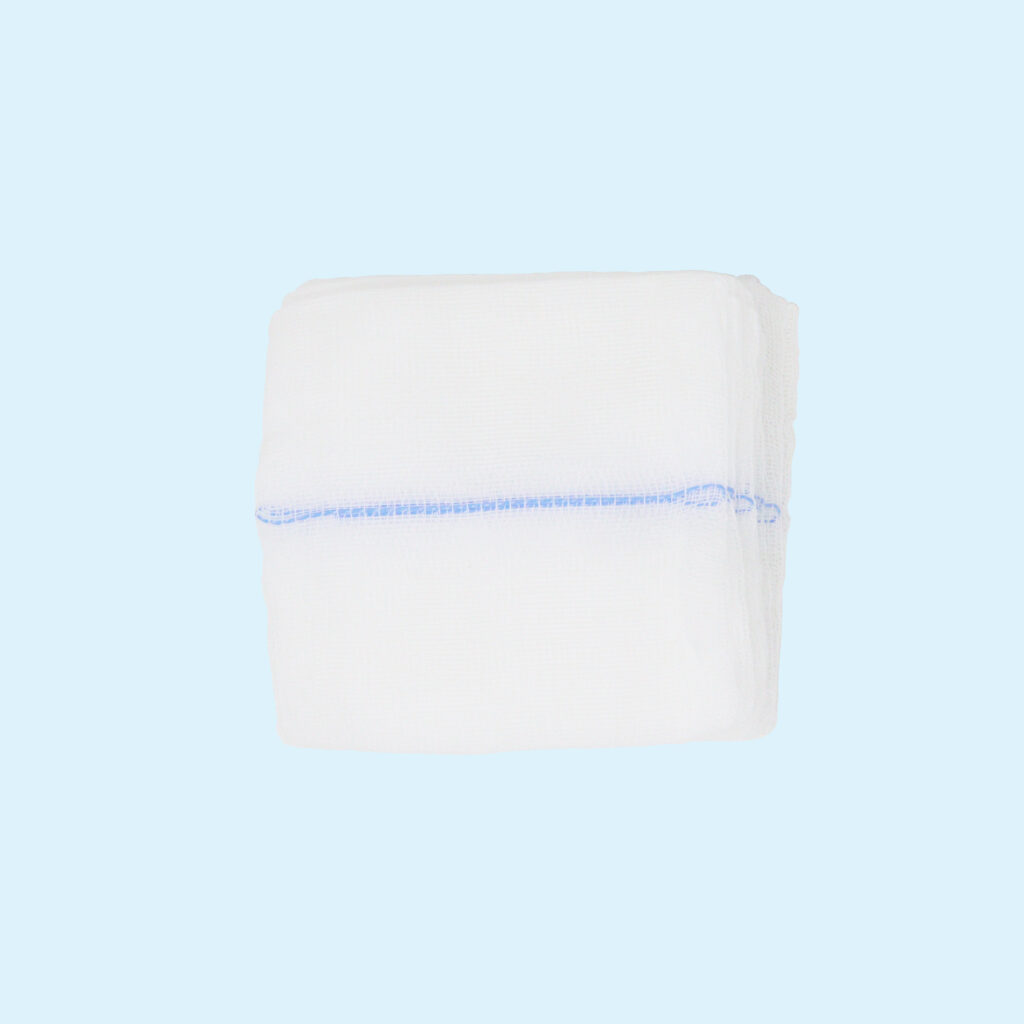

Gauze Swab: For general wound dressing procedures, including wound cleansing, absorption of blood and exudates, wound coverage and protection.
All angles, lengths and dimensions are nominal.
Please note any products featuring a “*” indicates the product is distributed by Pennine.
Product Code
Type/Ends
Inside Diam.
Length
Box Qty
PEN-1250
Male Luer and Wolf Connector
6mm
2.5m
20
PEN-1330E
Male Luer and Funnel Connector
6mm
3m
15
PEN-1330LL
Male Luer and Male Luer
6mm
3m
20
PEN-1331
Male Luer and 15/22mm Filter Adaptor
6mm
3m
15
PEN-1334
Female Luer and Male Luer
6mm
3m
20
PEN-1250
Filter Spec:
Inlet/Outlet Connectors of the filter:
– In: OD 8mm (approx.) hose barbed and ID 3.6mm (approx.);
– Out: OD 15 mm Male ISO and ID 12.7mm (approx.).
Approx. dimensions of filter: 65mm diameter x 55.7mm height. Bidirectional filter.
Weight of filter: 17gm (approx.).
Filter Efficiency @ 15L/min using DEHS@0.3µm: Min.99.8%
Gauze Swab Spec:
10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free
PEN-1330E
Filter Spec:
Inlet/Outlet Connectors of the filter:
– OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of the filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%
Gauze Swab Spec:
10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free
PEN-1330LL
Filter Spec:
Inlet/Outlet Connectors of the filter:
– OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of the filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%
Gauze Swab Spec:
10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free
PEN-1331
Filter Spec:
Inlet/Outlet Connectors of Filter: 22mm Male/15mm Female – 22mm Female/15mm Male ISO Connector.
Bidirectional Filter.
Approx. dimensions of filter: 61.5mm x 48.9mm x 48.9mm.
Weight of filter: 22g (approx.).
Filter Efficiency @ 30L/min using TSI 8130: Min. 99.0%
Gauze Swab Spec:
10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free
PEN-1334
Filter Spec:
Inlet/Outlet Connectors of Filter: OD 8mm (approx.) hose barbed and ID 4.4mm (approx.) – both sides.
Approx. dimensions of filter: 54mm diameter x 53.3mm height.
Weight of filter: 11g (approx.).
Bidirectional filter.
Filter Efficiency DEHS @ 0.3 microns @ 15L/min: Min. 99.99%
Gauze Swab Spec:
10cm x 10cm x 12ply
Cotton
Gauze 17threads/sqcm
Latex & PVC Free
Enquire Now!
Download Your FREE Copy of The Laparoscopy Brochure

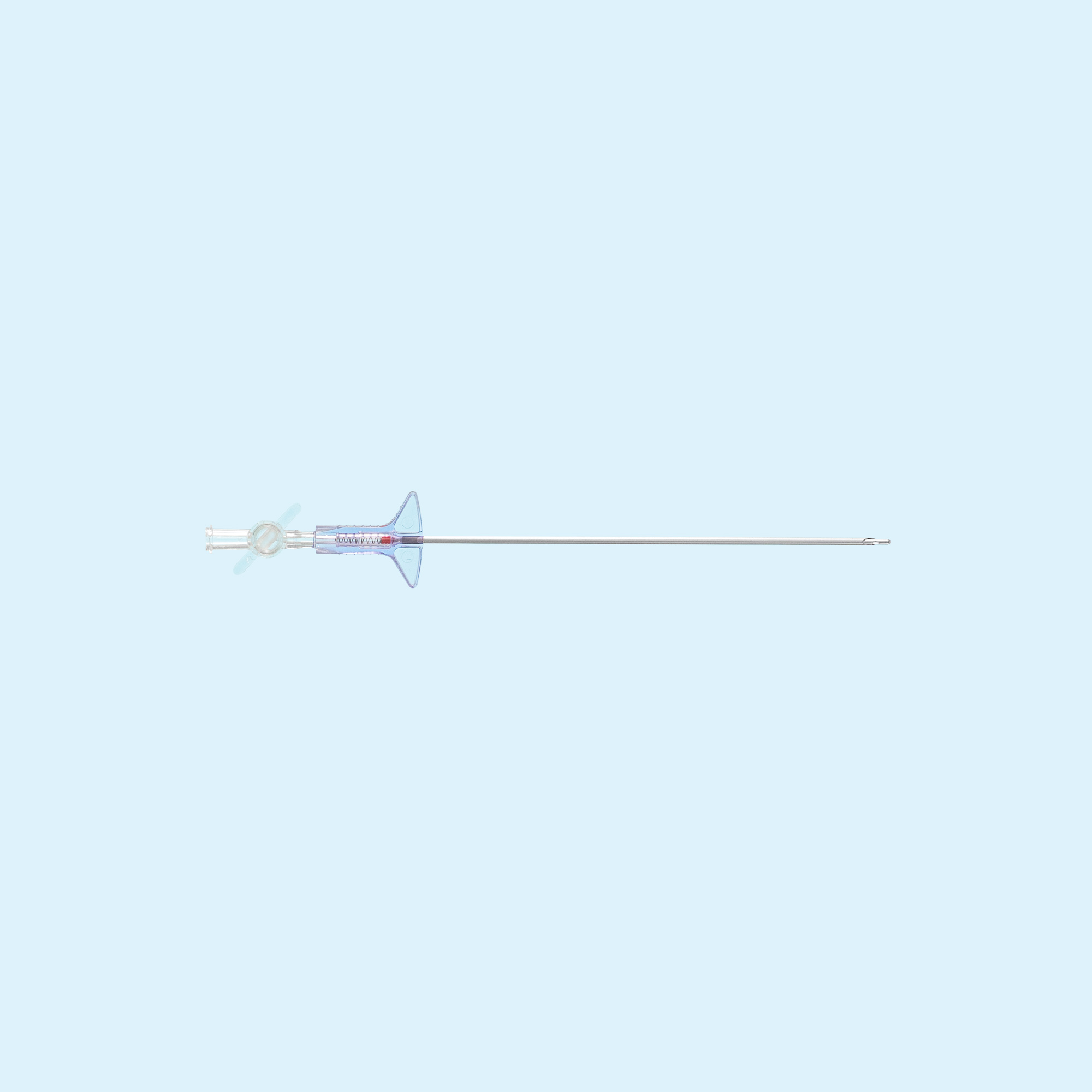

Pennine Healthcare offers a range of high-quality laparoscopic instruments designed for precision and efficiency in surgical procedures. Our products include the Suction Irrigation Set for effective fluid management, the Veress Needle for safe peritoneal entry, the Diathermy Quiver & Extension for organised storage, Insufflation Tubing Sets for reliable gas delivery, and convenient Laparoscopic Packs that provide all essential instruments in one solution. With over 50 years of trusted expertise and a commitment to innovation, our medical-grade instruments ensure optimal performance and safety in laparoscopic surgery.
